Technical Drawings:

Drawings also available in DWG format. Click here...

Ref	Description

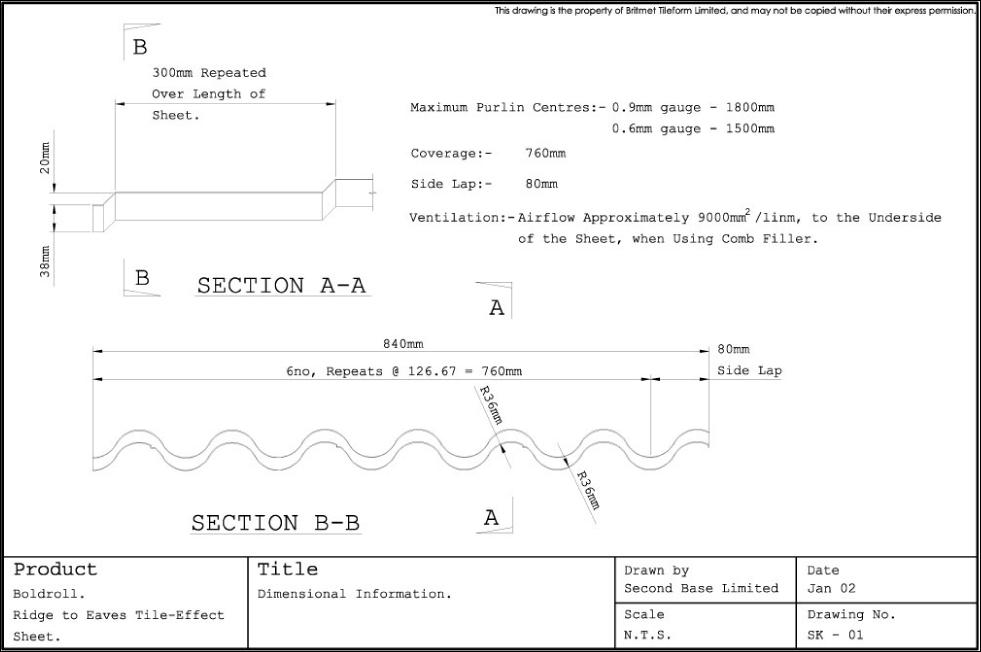

SK-01	Dimensional Information

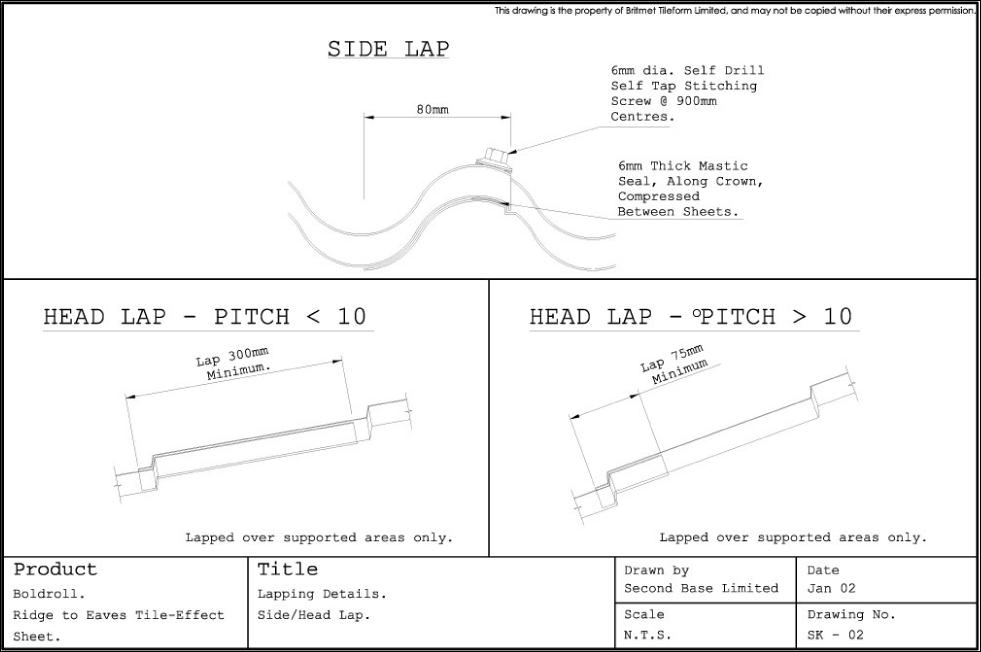

SK-02	Lapping Details. Side/Head Lap
SK-04	Standard Flashings. Ridge/Hip, Verge/Barge, Eaves Drip and Apron
SK-05	Standard Flashings. Upstand, Mono Ridge, Eaves Fascial/ Soffit and Verge Fascia/Soffit
SK-06	Standard Flashings. Junction, Valley and Vent Ridge
SK-08	Sheet Mitre Detail at Head Lap
SK-09	Typical Ventilated Eaves Detail. Steel Substructure
SK-010	Typical Ridge Detail. Steel Substructure
SK-011	Typical Verge Detail. Steel Substructure
SK-012	Typical Hip Detail. Steel Substructure. Cut Away Detail
SK-013	Typical Mono Ridge Detail. Steel Substructure
SK-014	Typical Ventilated Eaves Detail. Timber Substructure
SK-015	Typical Ridge Detail. Timber Substructure
SK-016	Typical Verge Detail. Timber Substructure
SK-017	Typical Hip Detail. Timber Substructure. Cut Away Detail
SK-018	Typical Hip Detail. Timber Substructure. Cut Away Detail
SK-019	Typical Valley Detail. Timber Substructure. Cut Away Detail
SK-020	Typical Mono Ridge Detail. Timber Substructure
SK-021	Typical Eaves Detail. Steel Substructure. Insulation and Liner Tray
SK-022	Typical Eaves Detail. Steel Substructure. Insulation and Liner Tray
SK-023	Typical Hip Detail. Steel Substructure. Insulation and Liner Tray. Cut Away Detail
SK-024	Typical Valley Detail. Steel Substructure. Insulation and Liner Tray. Cut Away Detail
SK-025	Typical Verge Detail. Steel Substructure. Insulation and Liner Tray
SK-026	Typical Mono Ridge Detail. Steel Substructure. Insulation and Liner Tray
SK-027	Typical Lead Flashing Detail to Chimney. Chimney at Ridge
SK-028	Typical Lead Flashing Detail to Chimney. Chimney within Roof Slope
SK-029	Typical Apron Flashing Detail
SK-030	Typical Upstand Flashing Detail
SK-031	Typical Detail at Change in Slope
SK-032	Typical Detail at Translucent Sheet. Plan and Section
SK-033	Typical Aluminium Gas Vent Ridge Detail
SK-034	Typical Air Vent Ridge and Soil Vent Ridge Detail
SK-035	Typical Detail at a Box Gutter
SK-036	Sunpipe
